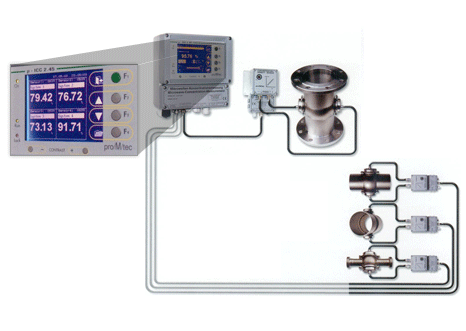

μ - ICC 2.45 Standard
![μ - ICC 2.45 Standard](/html_2022/main/img/sub/product_visual_06.gif)
특징
- 마이크로웨이브 방식으로 오염 및 코팅 문제없음
- 내마모성 우수
- 설치의 용이성(탱크,배관등 설치 가능)
- 다중채널 구성가능 : 본체(A) 1대와 센서(B,C) 최대 4식 구성
- 케이블 길이 최대 150m (본체와 센서)
- RS232 또는 RS485통신 가능
- 본체1대에 센서 최대 4대까지 연결가능
- 본체에서 4개의 독립 신호출력 0/4 - 20mA
- 표시화면 4개 분할가능
발전 제당 음료 정수장 제철 화학
원리
![](/html_2022/main/img/sub/product_visual_06_01.gif)

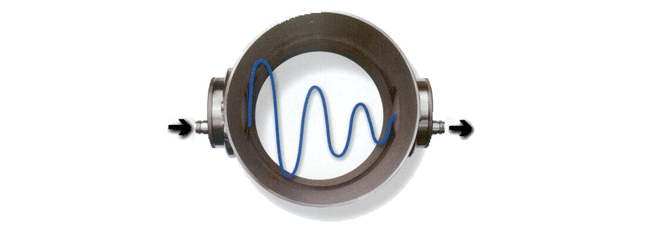

마이크로파의 위상차 변위 특성을 이용하여 센서에 흐르는 액체의 수분, 즉 고형물의 양 변화를 측정한다.
공정중 액상물질의 농도, 밀도, 고형분 또는 수분의 양을 측정한다. 측정가능물질 : 액체, 페이스트, 부유물등
적용사례
![](/html_2022/main/img/sub/product_visual_06_02.gif)
탱크설치(결정판 밑부분)
삽입형 센서 DN100,PT100내장
![](/html_2022/main/img/sub/product_visual_06_03.gif)
수직배설관설치(DN125)
삽입형 센서와 온도센서 후렌지 내장
![](/html_2022/main/img/sub/product_visual_06_04.gif)
DN80 수직배관설치,
양방향 투과방식
![](/html_2022/main/img/sub/product_visual_06_05.gif)
DN150의 수직배관,
양방향 투과방식
![](/html_2022/main/img/sub/product_visual_06_06.gif)
10개 센서를 5개 본체에 연결
![](/html_2022/main/img/sub/product_visual_06_07.gif)
DN40의 바이패스 설치
![](/html_2022/main/img/sub/product_visual_06_08.gif)
DN40의 바이패스 설치
![](/html_2022/main/img/sub/product_visual_06_09.gif)
대구경 파이프의 양방향 투과장식 삽입형 센서(DN100)를 배관 후렌지에 체결 PT100은 별도부착
![](/html_2022/main/img/sub/product_visual_06_10.gif)
현장표시를 위해, 결정관 벽면부착
![](/html_2022/main/img/sub/product_visual_06_11.gif)
결정관에 가장 손쉬운 설치 삽입형 센서와 PT100을 팬에 직접부착
제품사양
μ-ICC 2.45 standard - Evaluation unit
μ-ICC 2.45 standard - Microwave module
Housing | Aluminium wall housing, robust design, protection IP65, Dimension 240 x 240 x 120 mm, 5.5 kg |
---|---|
Mounting | 4 holding flaps H x W = 142.5 x 273 mm for ø 5 mm |
Power supply | AC: 90 – 270 V, 45 – 68 Hz; max. 45 VA alternative DC: 18 – 36 V DC max. 1000 mA for 1 to 2 sensors DC max. 1800 mA for 3 to 4 sensors |
Display | Monochrome-LC ¼ - VGA, 320 x 240 pixel, illuminated. Large display of the measurement result and drag pointer with analogue bar graph displays of deviation of the measurement in its defined scale |
Handing | Foil keyboard with 4 soft keys, well-structured multilingual menu |
Status display Outputs | 3 LEDs for operational signal, status of the measurement and access-PIN for parameter |
Outputs | 4 x 0/4 – 20 mA isolated outputs for concentration, range can be set for each channel specifically. Load max. 500 ohms |
Data interface | RS 232, 9600 Bd for data communication or comfortable softwareupdate |
Data memory | EEprom – data memory for 30 calibration and parameter data sets. All data are absolutely saved in case of power failure. Option: additional changeable memory module for back-up of 30 data sets |
Inputs | 4 x TNC-plugs for 50 ohms coaxial cable, RG 58, max. 150 m each for simultaneous running of 4 separated microwave modules. Digital data transmission on carrier frequency 10 MHz |
Temperature | Environment 0 to 50 ℃ |
Housing | Aluminium wall housing, robust design, protection IP65, Dimension 166 x 100 x 81 mm, 1.4 kg |
---|---|
Mounting | 4 holding flaps H x W = 87 x 123 mm for ø 5 mm |
Power supply | DC 24V through coaxial cable from the controller |
Microwave | Extremely stabile phase and attenuation measurement with PLLsynthesizer, 2.45GHz, transmission performance 10 mW, 10 dBm |
Microwave cable | 2 x N-plugs for highly shielded coaxial cable 50 ohms, typical 1 to 2 m (max. 3 m); 0.5 kg |
Data memory | EEprom-data memory for reference point, calibration data in case of power failure all data absolutely saved |
Output | 1 x TNC-plug for coaxial cable 50 W, RG 58 for data transmission to the controller |
Input | Pt 100/ Pt 1000 two-wire connection, Range – 50 to 200 ℃ |
Temperature | Environment 0 to + 60 ℃ |
