μ - ICC 2.45 Compact

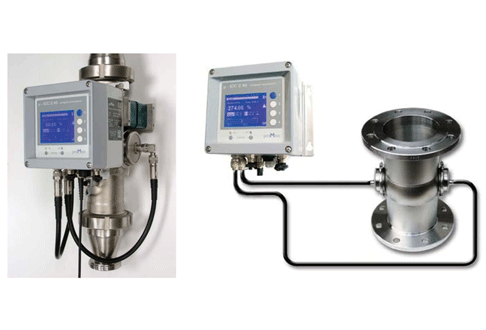

![μ - ICC 2.45 Compact](/html_2022/main/img/sub/product_visual_06_12.gif)
특징
- 비광학식의 오염 및 코팅문제 없음
- 내마모성 우수
- 설치의 용이성
- 4-20 mA 통신
- SD카드저장
발전 제당 음료 정수장 제철 화학
적용사례
![](/html_2022/main/img/sub/product_visual_06_02.gif)
탱크설치(결정판 밑부분)
삽입형 센서 DN100,PT100내장
![](/html_2022/main/img/sub/product_visual_06_03.gif)
수직배설관설치(DN125)
삽입형 센서와 온도센서 후렌지 내장
![](/html_2022/main/img/sub/product_visual_06_04.gif)
DN80 수직배관설치,
양방향 투과방식
![](/html_2022/main/img/sub/product_visual_06_05.gif)
DN150의 수직배관,
양방향 투과방식
![](/html_2022/main/img/sub/product_visual_06_06.gif)
10개 센서를 5개 본체에 연결
![](/html_2022/main/img/sub/product_visual_06_07.gif)
DN40의 바이패스 설치
![](/html_2022/main/img/sub/product_visual_06_08.gif)
DN40의 바이패스 설치
![](/html_2022/main/img/sub/product_visual_06_09.gif)
대구경 파이프의 양방향 투과장식 삽입형 센서(DN100)를 배관 후렌지에 체결 PT100은 별도부착
![](/html_2022/main/img/sub/product_visual_06_10.gif)
현장 확인을 위한 벽면부착
![](/html_2022/main/img/sub/product_visual_06_11.gif)
탱크에 가장 손쉬운 설치 삽입형 센서와 PT100을 직접부착
제품사양
Housing | Aluminium wall housing, protection IP65, Dimension 160 x 160 x 120 mm, 3,1 kg |
---|---|
Mounting | 4 holding flaps H x B = 120 x 180 mm for ø 6 mm |
Power supply | 24 V DC, max. 1000 mA |
Display | 3.9”-Monochrome QVGA-LC, 320 x 240 pixel, illuminated. Large display of the measurement result and drag pointer with analogue bar graph displays of deviation of the measurement in its definded scale |
Microwave | Extremely stabile phase, attenuation and level measurement with PLL-synthesizer, 2.45GHz, transmission performance 10 mW, 10 dBm |
Micorowave cable | 2 x N-plugs for coaxial cable 50 ohms, typical 1 to 2 m (max. 3 m) |
Handing | Foil keyboard with 4 soft keys, well-structured multilingual |
Status display Outputs | LEDs for status of the measurement and access-PIN for parameter |
Output | 4 – 20 mA isolated output for concentration, load max. 500 ohms |
Data interface | USB 2.0 interface for software update, data output and calibration via pc [PROFIBUS PA / ETHERNET/ IP / RS-232/-485 / CANopen - on request] |
Data memory | SD-/ SD-HC-Card Slot for writing/ reading measuring datas & storage set of parameters |
Environment temperature | 0 to 50℃ |
Temperature compensation | Pt 100 with four-wire-system, M12 plug-in |
Sample push-button | for memorizing measured data, M12 plug-in |
