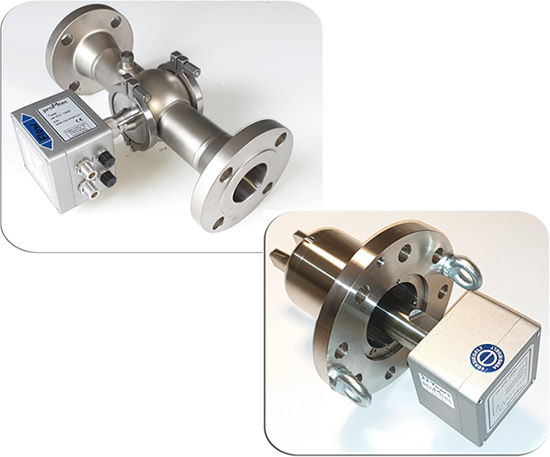

저브릭스 농도계(us-ICC 1500 TOF)
특징
- 압력, 유속, 진동 등 외부영향을 받지 않음
- 설치 및 점검 용이
- 유지보수 비용 없음
- 추가적 구성품 불필요(Modules, booster등)
- 측정범위 : 0~100%
- 높은 정확도
- 온도보상
식품 음료 화학
Technical Specifications
Technical specification evaluation unit us-ICC 1500
Technical specifications Accessories
| Housing | Aluminium wall housing, protection IP65, Dimension 160 x 160 x 120 mm, 3,1 kg |
|---|---|
| Mounting | 4 holding flaps H x B = 120 x 180 mm for ø 6 mm |
| Power supply | 24 V DC, max. 1000 mA |
| Display | 3.9”-Monochrome QVGA-LC, 320 x 240 pixel, illuminated. Large display of the measurement result and drag pointer with analogue bar graph displays of deviation of the measurement in its definded scale |
| TOF measurement | Extremly stable low frequency pulse generator 20-50 V and pulse detector with delay time measurement in μs range |
| User interface menus | Extremely stabile phase, attenuation and level measurement with PLL-synthesizer, 2.45GHz, transmission performance 10 mW, 10 dBm |
| Micorowave cable | Soft touch keyboard with 4 keys, well-structured multilingual menus |
| Status display | LEDs for measurement status and access-PIN for paramet |
| Output (two outputs) | 4 – 20 mA isolated output for concentration and temperature, loop resistance 500 ohms |
| Data interface | USB 2.0 interface for software update, data output and calibration via PC |
| Data memory | SD-/ SD-HC-card slot for writing / reading measurement data & storage of parameter settings |
| Environment temperature evaluation unit | 0 to + 50 °C |
| TOF-sensor connection cable | 2 x N-plugs for heavily shielded RG 400 coaxial cable 50 ohms, Length: 0,5 m, 1 m, 1,5m, 2 m, 3 m |
|---|---|
| Environment temperature | - 40 bis + 90° |
| Temperature compensation | Pt100 with four-wire system, M12 plug-in |
| Sample button | For data storage, M12 plug-in |
