Paddy

Paddy

In virtually all processes in which solids are processed, they must be ground and then screened. At the end of these processes there are always at least two fractions: the fine particles, often also referred to as the material flow, and the coarse particles. To date, there has been no easy way to check the material flow for the presence of oversized particles. This unwanted situation often occurs when a so-called screen break occurs. Unless screen breaks are detected at an early stage, large scrap quantities may be produced or it may be necessary to subsequently re-screen large quantities of material. PADDY is a particle sensor that can detect and trigger an alarm in the presence of oversized particles in the material flow. PADDY uses state-of-the-art microwave technology in combination with intelligent evaluation software.

Technology
USE

In virtually all processes in which solids are processed, they must be ground and then screened.
At the end of these processes there are always at least two fractions: the fine particles, often also referred to as the material flow, and the coarse particles. To date, therehas been no easy way to check the material flow for the presence of oversized particles. This unwanted situation often occurs when a so-called screen break occurs. Unless screen breaks are detected at an early stage, large scrap quantities may be produced or it may be necessary to subsequently re-screen large quantities of material.

PADDY is a particle sensor that can detect and trigger an alarm in the presence of oversized particles in the material flow. PADDY uses state-of-the-art microwave technology in combination with intelligent evaluation software.

FUNCTION

PADDY can be installed in free-fall pipes downstream from screening or grinding systems. Microwaves with a frequency of 24.125 GHz are fed into the product stream and backscattered by the particles. This scattering effect occurs differently for particles that are significantly smaller than the wavelength of the emitted microwaves (Rayleigh scattering) and particles whose size lies in the same wavelength range as the microwaves (Mie scattering).

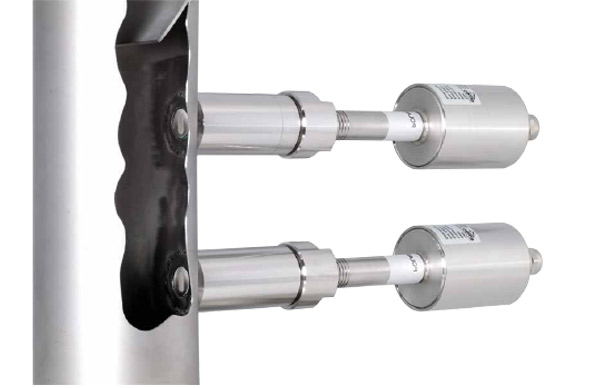

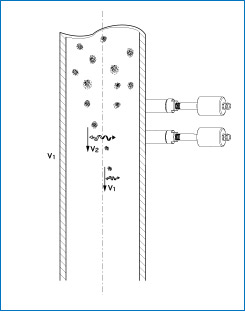

Our patented measuring method consists of two microwave sensors, which are installed in a free-fall pipe. Due to the arrangement of two baffles, all particles in the product flow begin to fall at the same speed. During the second leg of the drop, differences in the falling speeds occur due to sedimentation - the coarser particles fall at a higher speed than the finer particles.

The frequency spectrum of the backscattered microwave signal contains information about the speed of the particles.

If speeds in the higher range are detected, this directly indicates the presence of larger particles and thus quickly alerts the operator to the possibility of a screen break.

System

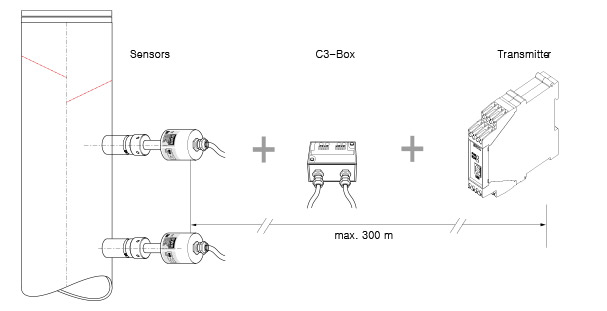

The complete measuring system consists of the following components:
  • 1 x microwave particle sensor (reference sensor)
  • 1 x microwave particle sensor (measuring sensor)
  • C3-Box
  • Transmitter in DIN Rail or field housing
  • 2 x sensor socket for welding on the pipe
  • Manual
System

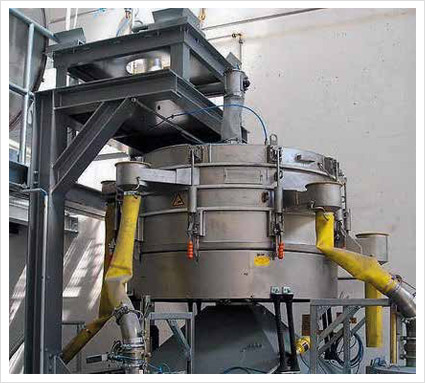

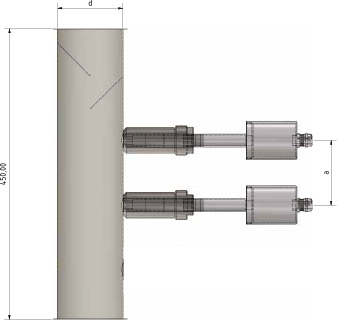

The PADDY measuring point is mounted after the sieve construction and requires a distance of approx. 450 mm. On this freefall, the required welding sockets and baffle plates are mounted. Depending on the sieve, the PADDY measuring point becomes direct mounted on the output or after a compensator.
A PADDY measuring point necessarily requires two sensors and two baffle plates in the pipeline. The baffle plates ensure a controlled flow of material in front of the two sensors.
The positions of the baffle plates and the sensor mounts are determined by ENVEA - SWR engineering, as there may be differences from application to application.
Technical Data
Sensor
Sensor에 대한 표
Measurement principle Microwave
Measurement range Particle sizes up to 10 mm - larger sizes on request
Housing material Stainless steel 1.4571
Protection type IP 65, dust explosion zone 20 or gas explosion zone 1 (optional)
Transmitter (DIN Rail)
Sensor에 대한 표
Power supply 24 V DC ±10 %
Power consumption 20 W / 24 VA
Protection type IP 40 to EN 60 529
Ambient operating temperature -10 … +45 °C
Dimensions 23 x 90 x 118 mm (W x H x D)
Weight Approx. 172 g
DIN rail fastening DIN 60715 TH35
Connection terminals cable cross-section 0.2-2.5 mm2 [AWG 24-14]
Current output 1 x 4 … 20 mA (0 … 20 mA), load < 500 Ω
Interface ModBus RTU (RS 485) / USB
Pulse output Open Collector - max. 30 V, 20 mA
Relay contact Max. rated load: 250 V AC
Max. peak current: 6 A
Max. rated load 230 V AC: 250 VA
Max. breaking capacity DC1:
3/110/220 V: 3/0.35/0.2 A
Min. switching load:
500 mW (10 V / 5 mA)
Data backup Flash Memory
Ambient operating temperature Sensor tip: -20 … +80 °C
Optional: -20 … +200 °C
Sensor element: 0 … +60 °C
Max. operating pressure 1 bar
Operating frequency K band 24.125 GHz, ±100 MHz
Transmission power Max. 5 mW
Weight 1.3 kg
Dimensions Ø 60, Ø 20, L 271 mm
Transmitter (field housing)
Transmitter (field housing)에 대한 표
Power supply 110 / 230 V AC 50 Hz (optional 24 V DC)
Power consumption 20 W / 24 VA
Protection type IP 65 to EN 60 52910.91
Ambient operating temperature -10 … +45 °C
Dimensions 258 x 237 x 174 mm (W x H x D)
Weight Approx. 2.5 kg
Interface RS 485 (ModBus RTU) / USB
Cable screw connectors 3 x M20 (4.5 - 13 mm Ø)
Connection terminals cable cross-section 0.2 - 2.5 mm² [AWG 24-14]
Current output 3 x 4 … 20 mA (0 … 20 mA), load < 500 Ω
Pulse output Open Collector - max. 30 V, 20 mA
Relay contact Max. rated load: 250 V AC
Max. peak current: 6 A
Max. rated load 230 V AC: 250 VA
Max. breaking capacity DC1:
3/110/220 V: 3/0.35/0.2 A
Min. switching load:
500 mW (10 V / 5 mA)
Data backup Flash Memory
