Continuous level measurement in storage silos(Nico)

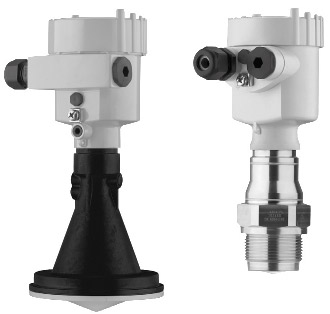

The Nico 120 radar sensor has been designed to continuously measure the level of materials in storage vessels under difficult process conditions.
It can be used on a wide range of different materials having varying particle sizes and compositions.
The measurement is unaffected by dusty atmospheres, obstructions or temperature variations. The Nico 120 measuring range is 120 metres.
The good signal focus ensures that vessel fittings and encrustations on the walls does not affect the measurement.
It can be used on a wide range of different materials having varying particle sizes and compositions.
The measurement is unaffected by dusty atmospheres, obstructions or temperature variations. The Nico 120 measuring range is 120 metres.
The good signal focus ensures that vessel fittings and encrustations on the walls does not affect the measurement.
Features
- 80 GHz All-round sensor
- continuous measurement
- also under difficult process conditions
- can be used on a wide range of different materials for level measurement in vessels up to 120 m height
SPECIFICATIONS
Technical Data Sensor
| Threaded connection | G1½, 1½ NPT |
|---|---|
| Flange connection | ≥ DN80, ≥ 3“ |
| Seal material | EPDM FKM |
| Housing material | Aluminium |
| Protection rating | IP 66/IP 68 (0.2 bar) IP 66/IP 67 IP 66/IP 68 (1 bar) |
| Output | Profibus PA Foundation Fieldbus 4 … 20 mA/HART - two-wire Modbus 4 … 20 mA/HART - four-wire |
| Ambient temperature | -40 ... 80 °C |
